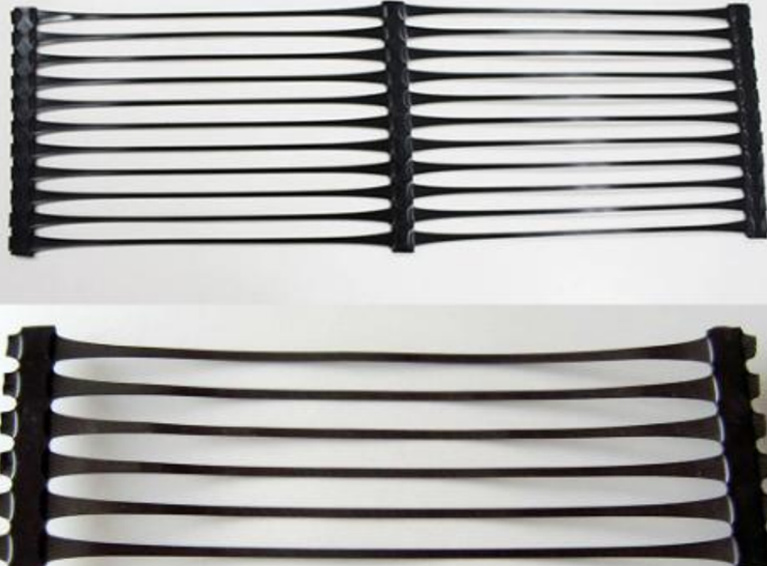

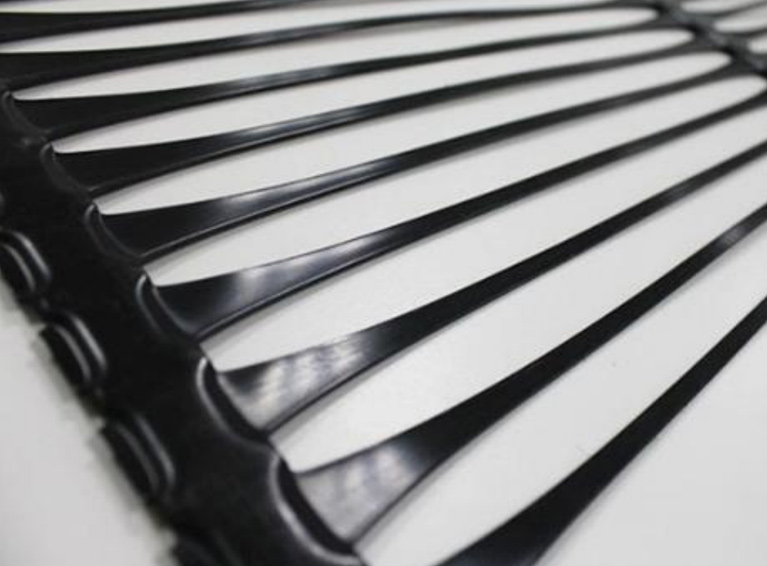

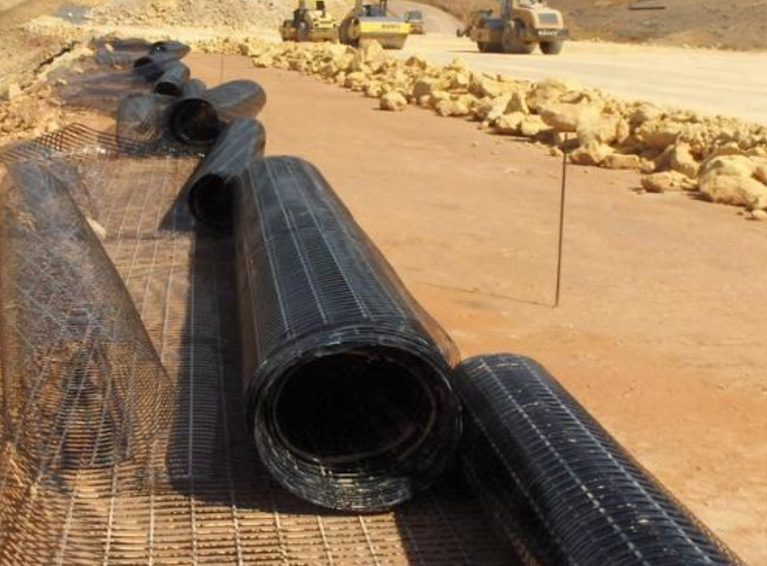

Uniaxial plastic geogrid
Description:
A unidirectional grid product with uniform mesh is produced using polymer and nanoscale carbon black as the main raw materials through extrusion and traction process.
Specification:
TGDG35 、TGDG50 、TGDG80、TGDG120 、TGSG160 、TGDG200
Property:
1. Enhance subgrade, improve stability and carrying capacity, extend service life;withstand a greater
2. alternating load;prevent the loss of subgrade material caused by deformation, cracking
3. improve the retaining wall self-supporting after being filled with soil. cost saving; and reduce maintenance costs.
Application:
Suitable for roadbed reinforcement on highways, municipal roads, railways, aircraft runways, etc; Strengthening of river and sea dams;
Fences for orchards, vegetable fields, livestock, land, etc. are suitable for reinforced soil retaining walls on highways, municipal roads, railways, aircraft runways, and riverbanks.
Product Specifications:
GB/T17689-2008

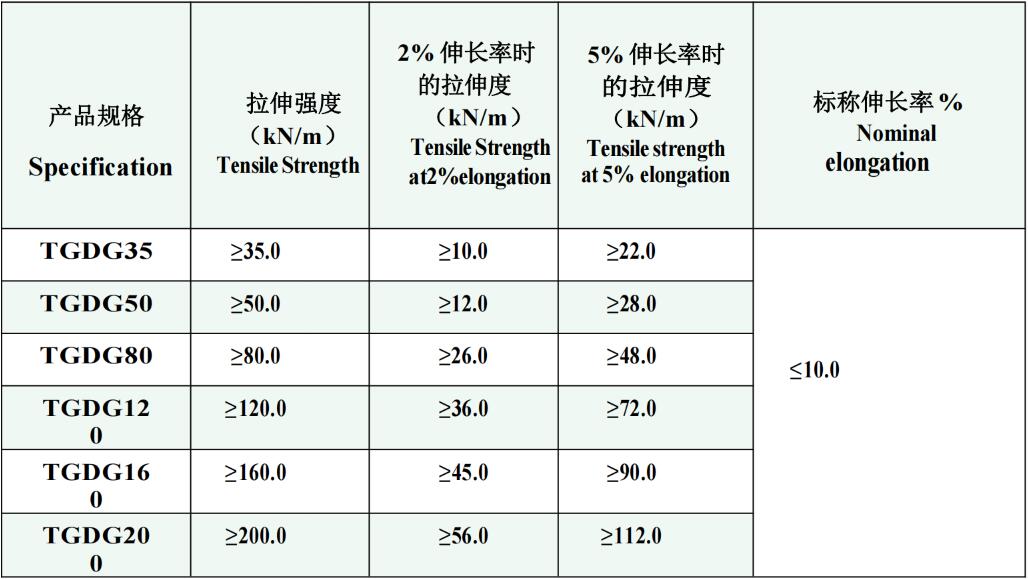

Table 1 PP single direction plastic geogrid

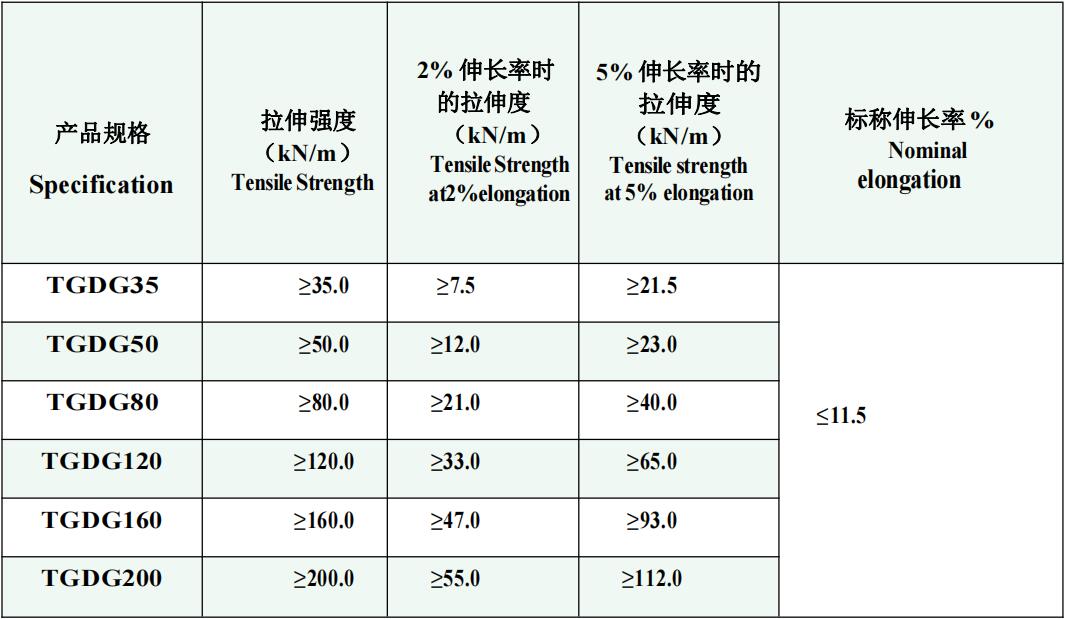

Table 2 High-density polyethylene sing direction plastic geogrid
