Geosynthetic clay liner （GCL）
Description:

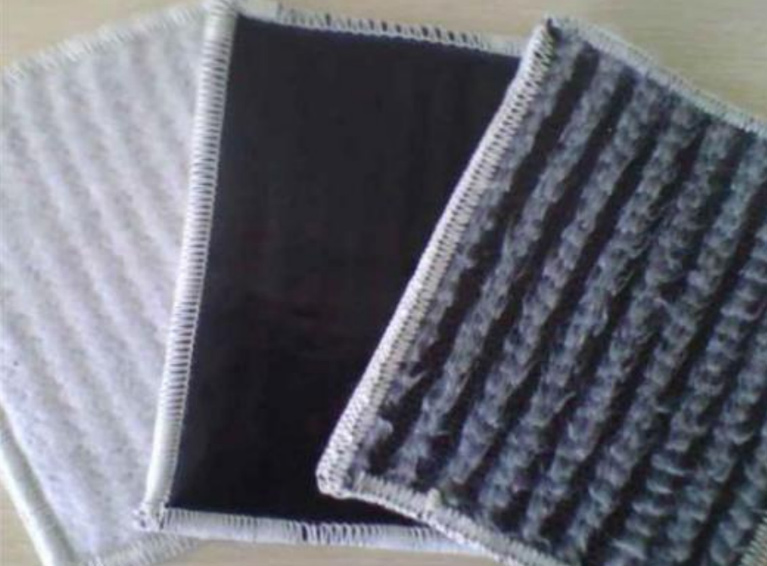

Bentonite waterproof mat (GCL) is a new type of geosynthetic material. Using natural sodium based bentonite as the material, bentonite particles are fixed between two layers of geotextile through a special process to produce a bentonite waterproof blanket, which not only has all the characteristics of geotextile, but also has excellent waterproof (permeability) performance.
Specification:
GCL-NP,needle punched GCL; GCL-OF,needle punched GCL coated with film;GCL-AH ad hensive GCL.Unit weight: ≥4000g/㎡,width: 4 ～6m.
Property:
1) Excellent water expansion performance and strong compactness;
2) Durable waterproof performance, green and environmentally friendly;
3) It has functions such as separation, reinforcement, protection, and filtration, making construction simple.
Application:
1)Municipal engineering, underground engineering of subways, buildings, and anti-seepage of roof reservoirs.

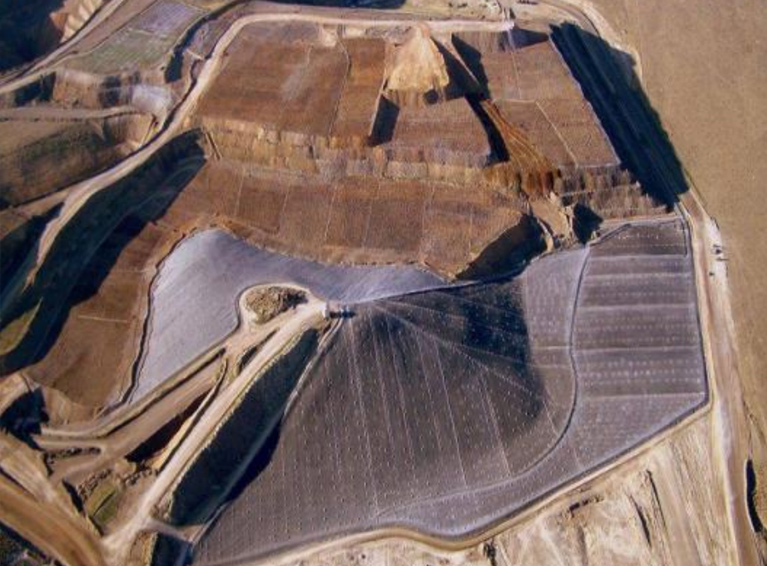

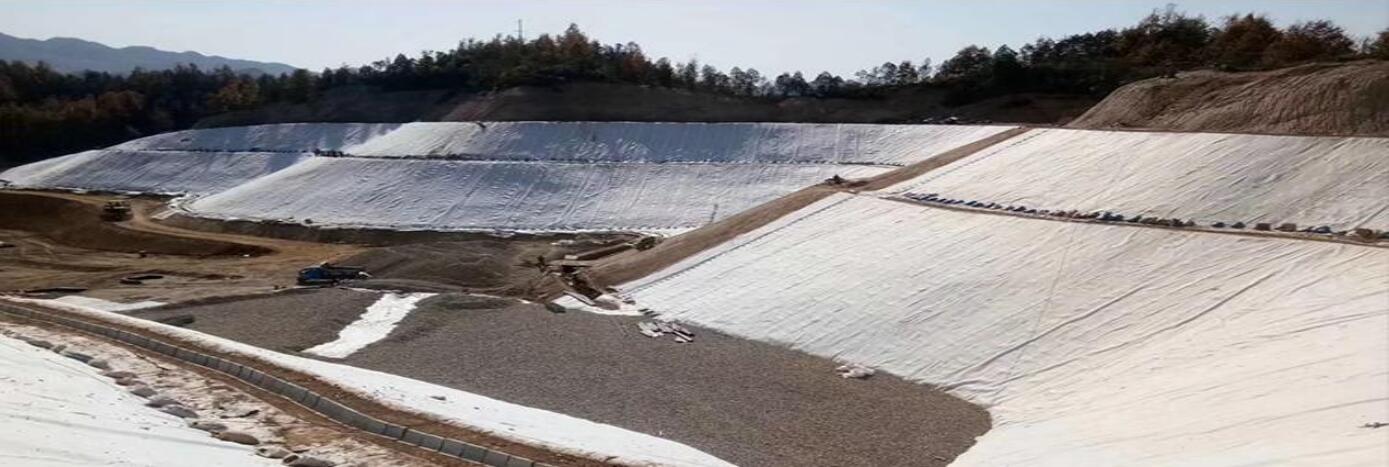

2)Environmental protection and sanitation, domestic waste landfill, sewage treatment plant, industrial waste.
3)Water conservancy, seepage prevention, leakage stoppage and reinforcement of Rivers and Lakes, reservoirs and dams.
4)The anti-seepage of the pond in the artificial lake golf course of the garden. 5)The anti-seepage and leakage prevention of engineering in the fields of petrochemical and mining.

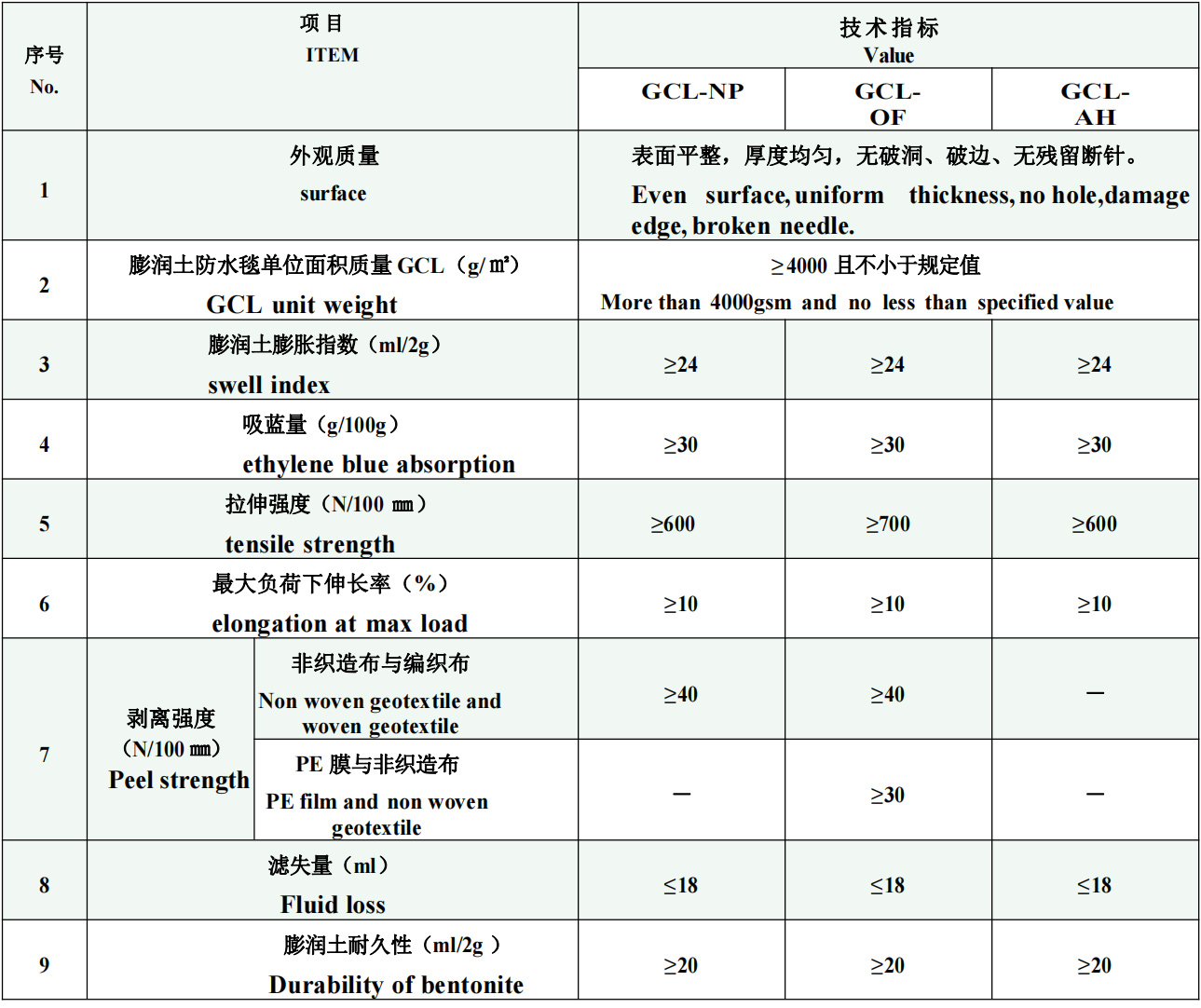

Product Specifications:
JC/T193-2006
