Plastic geocell
Description:

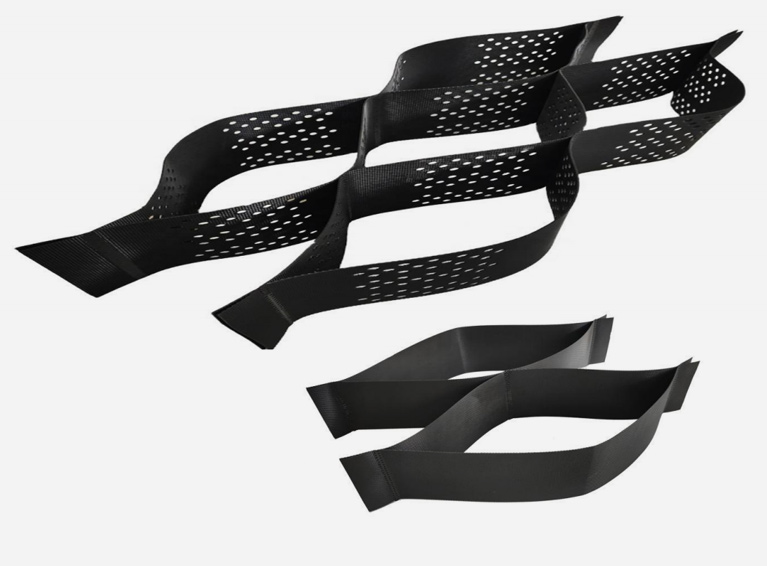

Plastic geocell is one new type geosynthetics material, basic sheet is high-molecular polymer, connected by rivets or ultrasonic welded to three-dimensional network structure, unfold it and fill in sand, gravel and clay etc. when used at construction site. According to customer's requirement, cut holes or carve arabesquitic in order to increase its lateral permeable ability, also increase the friction and binding force with the foundation material.
Specification:
TGLG5, TGLG8, TGLG10,TGLG15, TGLG20(CM)
Property:

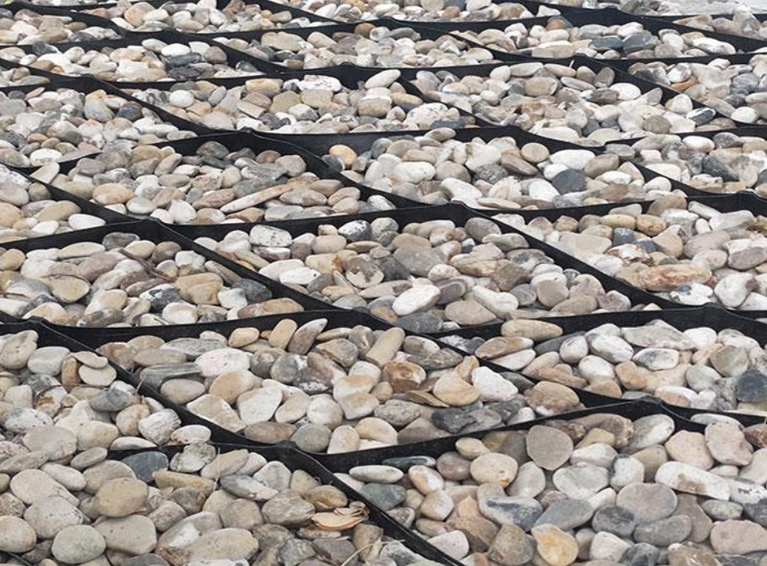

1.Easily retracted and folded during transportation, and can be tensioned into a mesh during construction. It is filled with loose materials such as soil, gravel, and concrete, forming a structure with strong lateral limitations and high stiffness
2.Lightweight material, wear-resistant, chemically stable, resistant to light oxygen aging, acid and alkali, suitable for different soil conditions such as deserts
3.Good lateral restrict and prevent slippery, prevent deformation, effectively enhance the bearing capacity of subgrade and dispersed loads function
4.The geocell height and welding distance etc. geometric dimensions are all changeable in order to meet the requirements of different projects
5.Capable and easily be expanded or contracted, small size for transportation, easy for connect and construction speed is fast

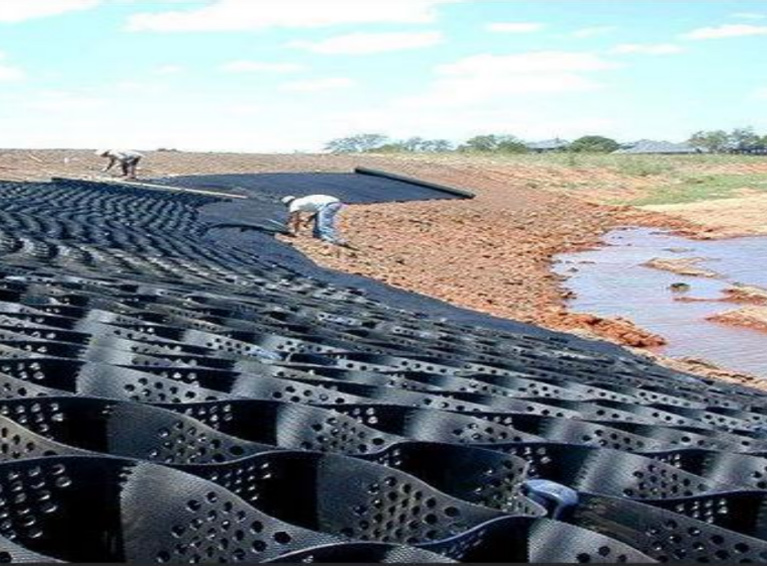

Application:
1 、Used for the stability of railway roadbed
2 、To stabilize the desert highway roadbed
3、Used in the governance of shallow water channel
4 、Used for the foundation reinforcement of retaining wall, wharf, levee
5、For the management of desert, beaches and river banks

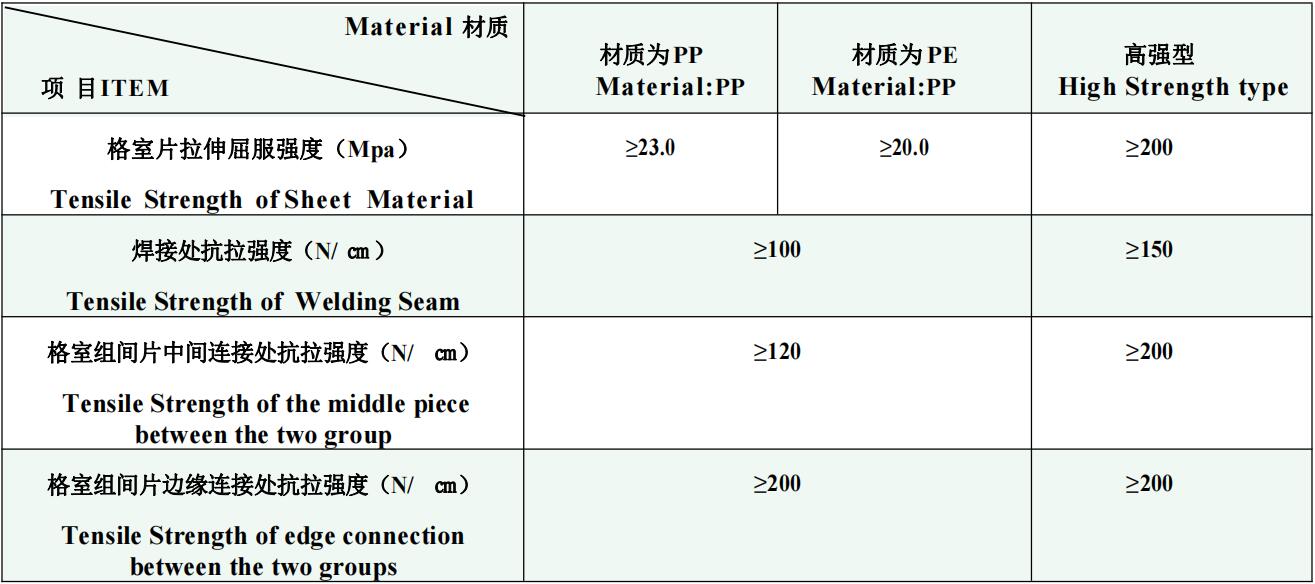

Product Specifications:
GB/T19274-2003
